Kinterra 3.0

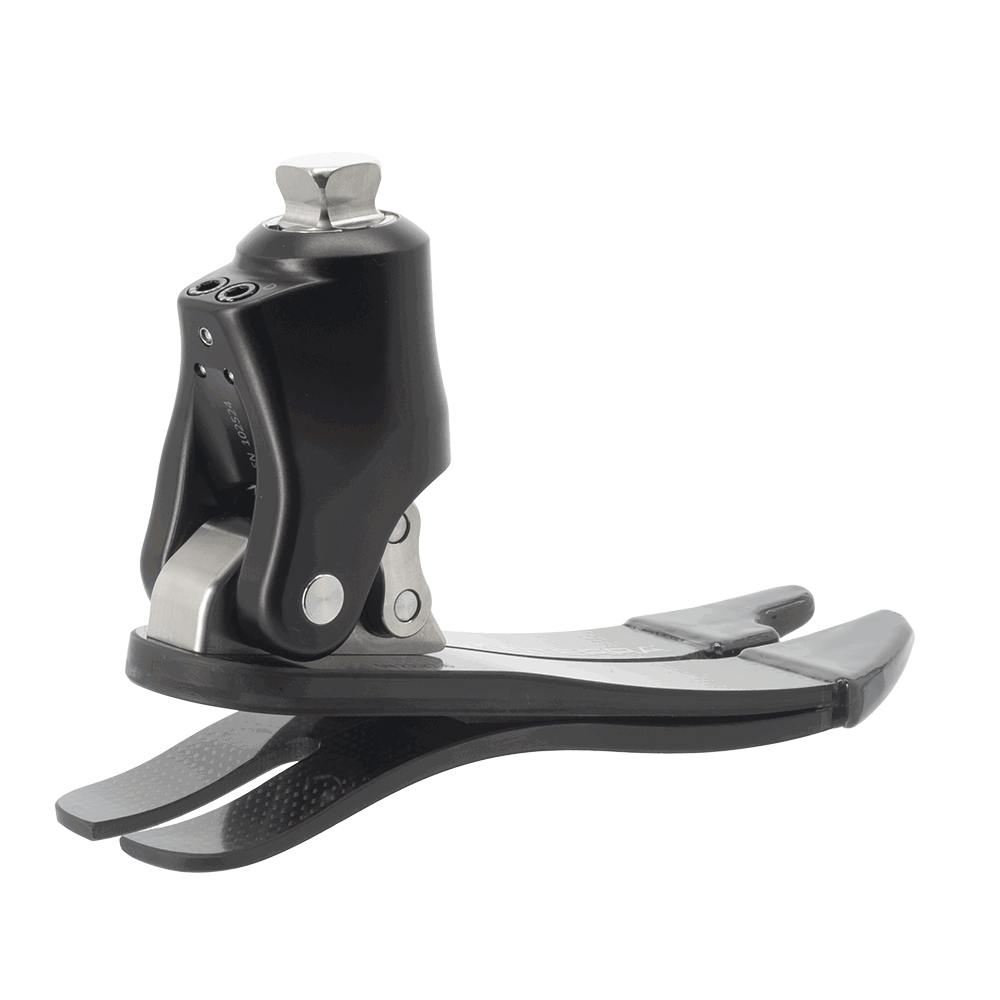

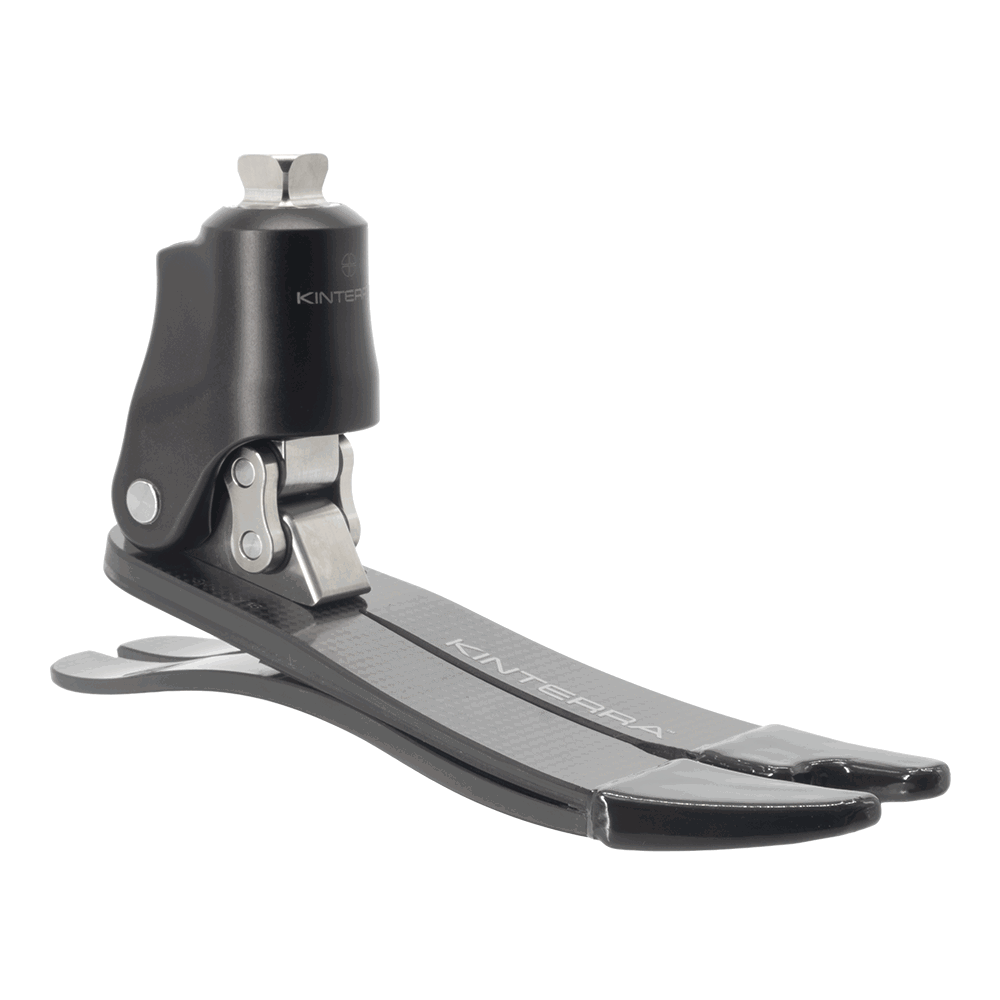

Lower LimbThe third edition from the well-proven hydraulic ankle that consistently sets higher standards for reliability, comfort and stability. The Kinterra 3.0 Foot/Ankle System combines carbon fibre and hydraulic technologies to enhance the walking gait for low to moderate impact K3 ambulators, ensuring improved stability on slopes and varied landscapes.
The Kinterra 3.0 model has a 20% increase in user weight rating compared to the previous 2.0 model. Now able to accommodate patient weights up to 150kg, without compromising any product unit weight increase.
Key Features
42% expansion of ROM – Energy return and socket comfort without sacrificing stability

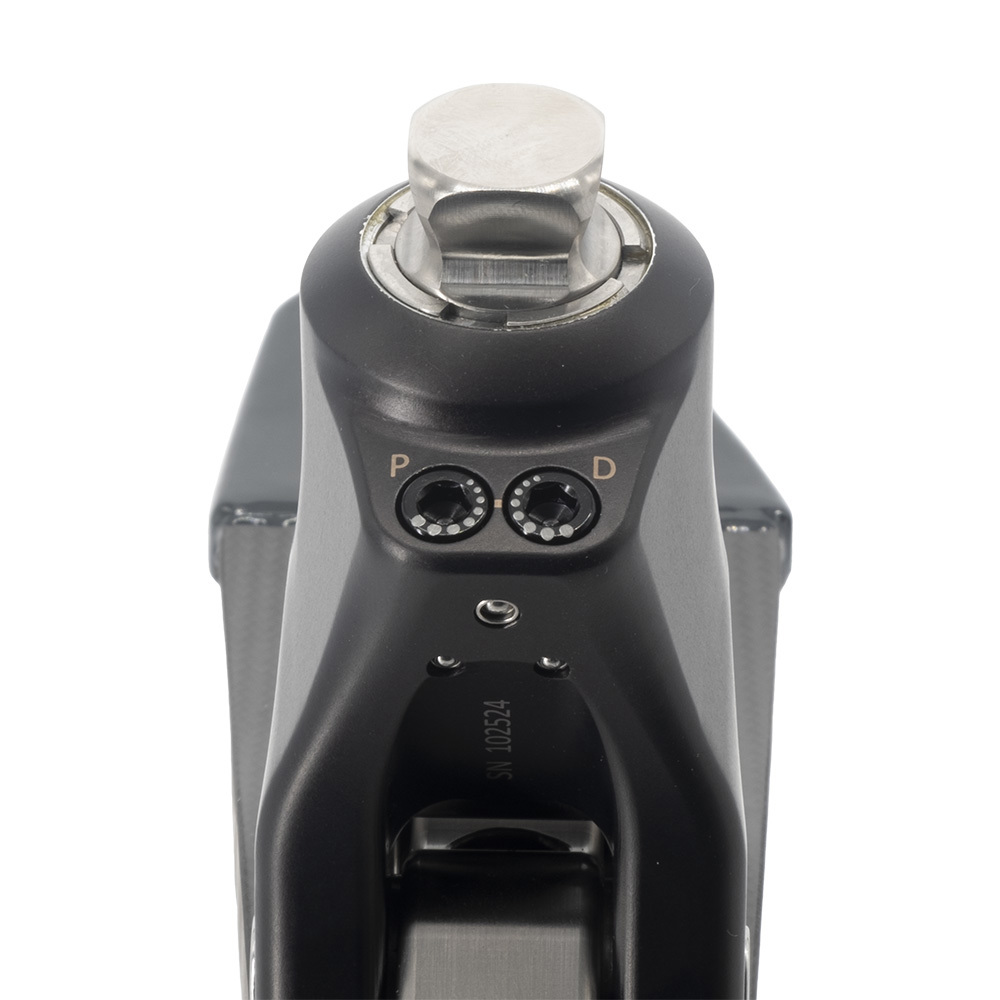

17° hydraulic ankle articulation – 15° of plantarflexion and 2° of dorsiflexion allow the foot to reach and maintain footflat across differing terrains and improved socket comfort while sitting
Improved dorsiflexion assist spring – Returns the ankle to 2°DF when unweighted, decreasing risk of toe catching during ambulation
Redesigned EnduraCore® footplate for energy return and a smooth rollover. A split heel and heel provide mediolateral stability and terrain adaptation
Redesigned pyramid and collar shape for a decreased build height and increased compatibility
Hinge pin diameter increased for improved fatigue resistance
Submersible in fresh water up to 1 metre for 30 minute
